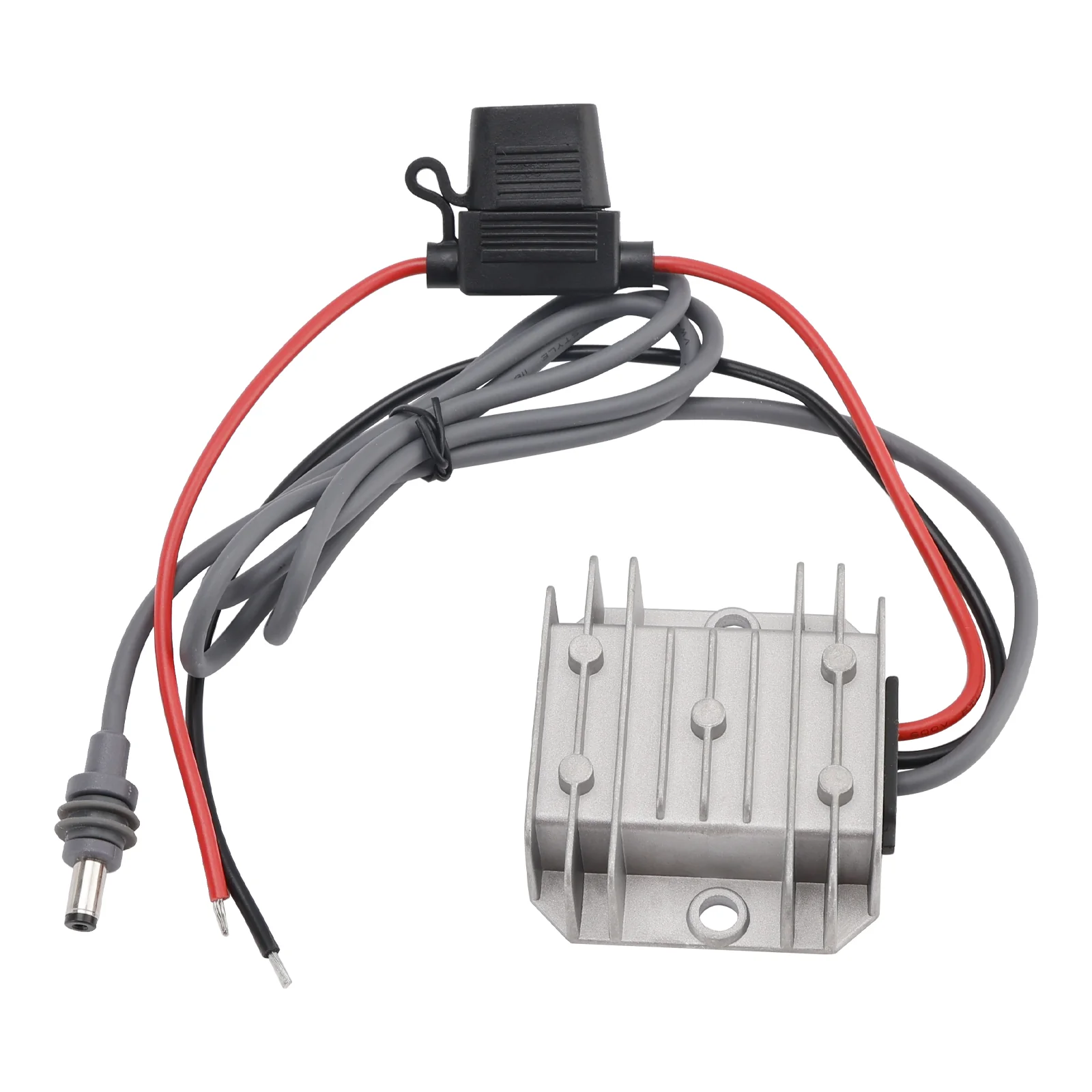

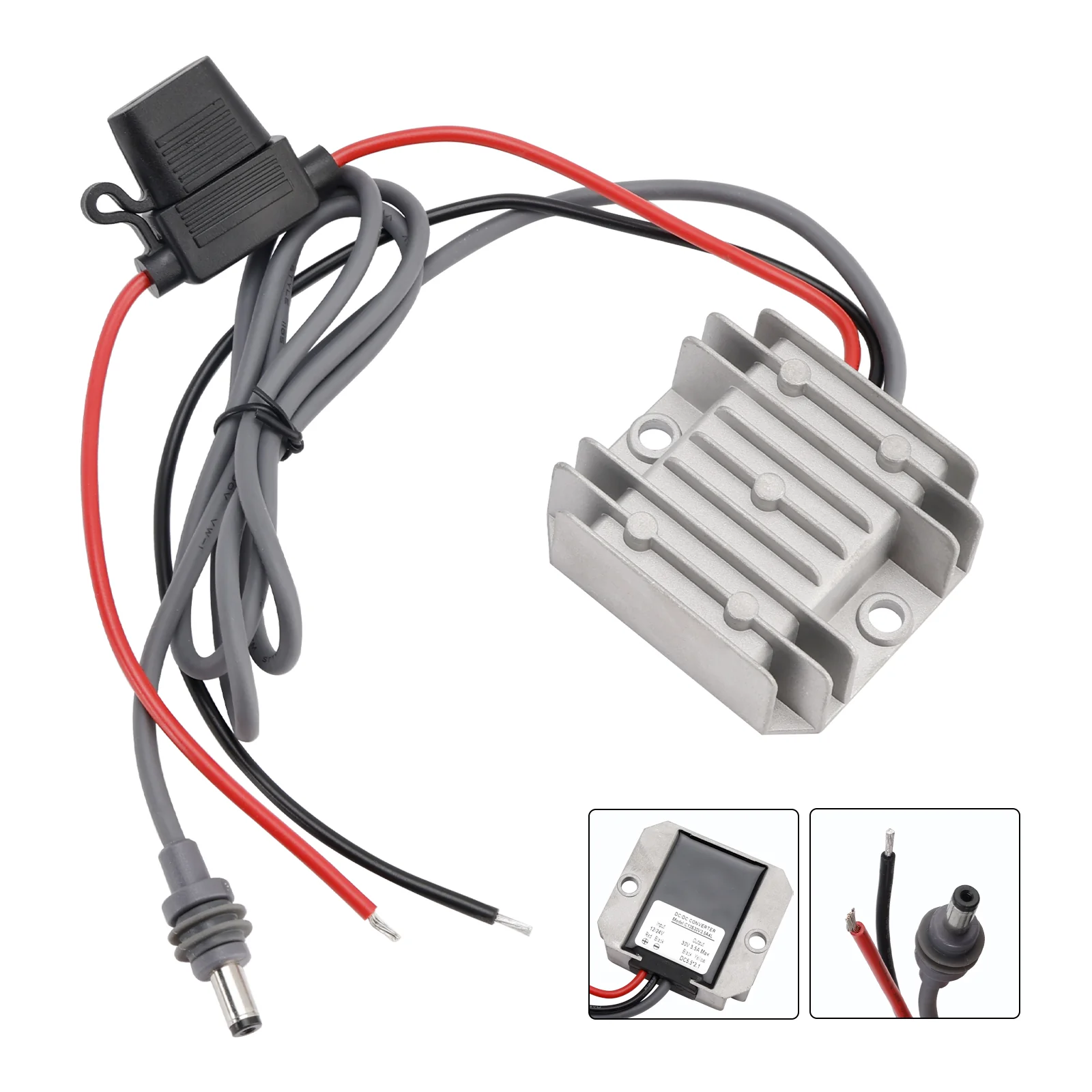

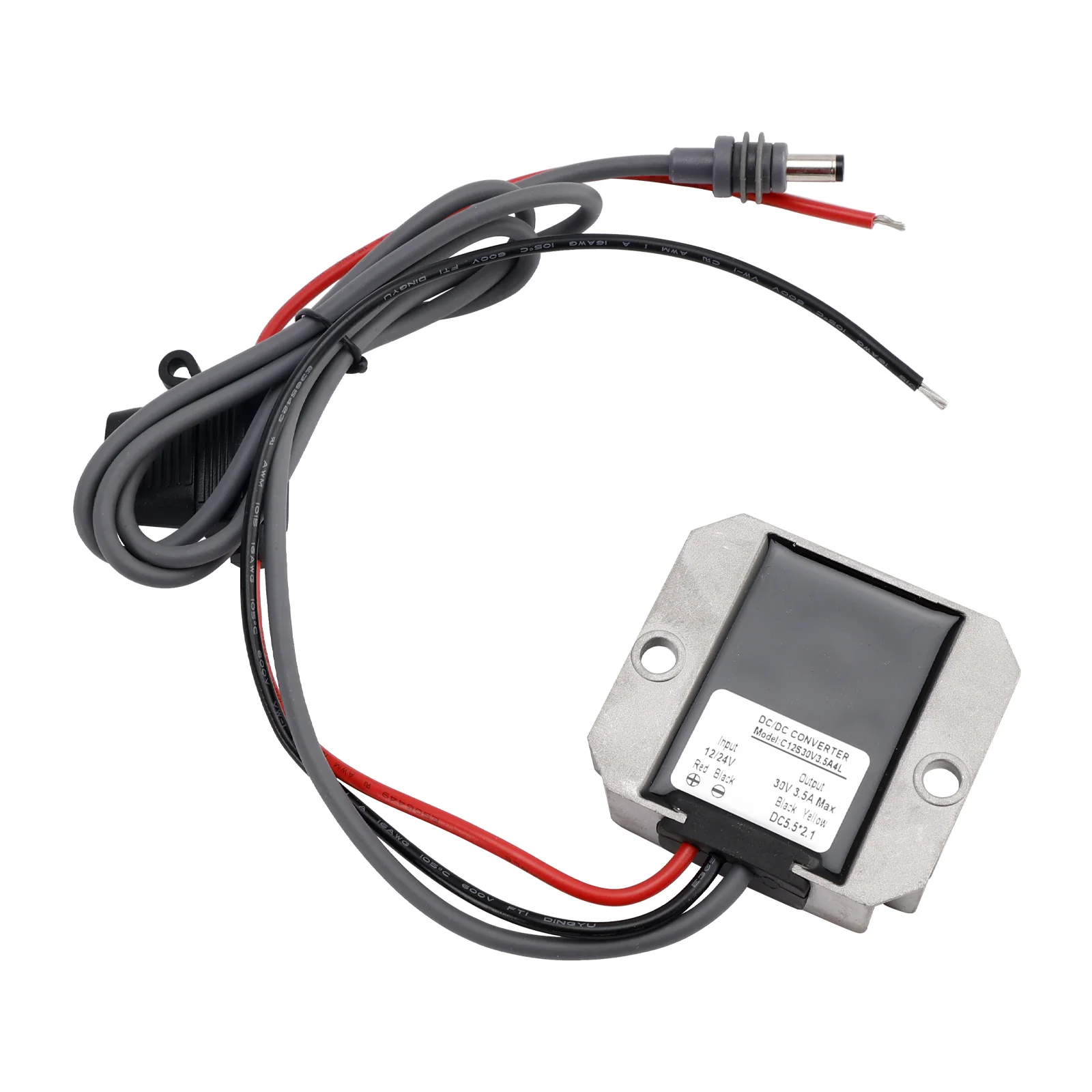

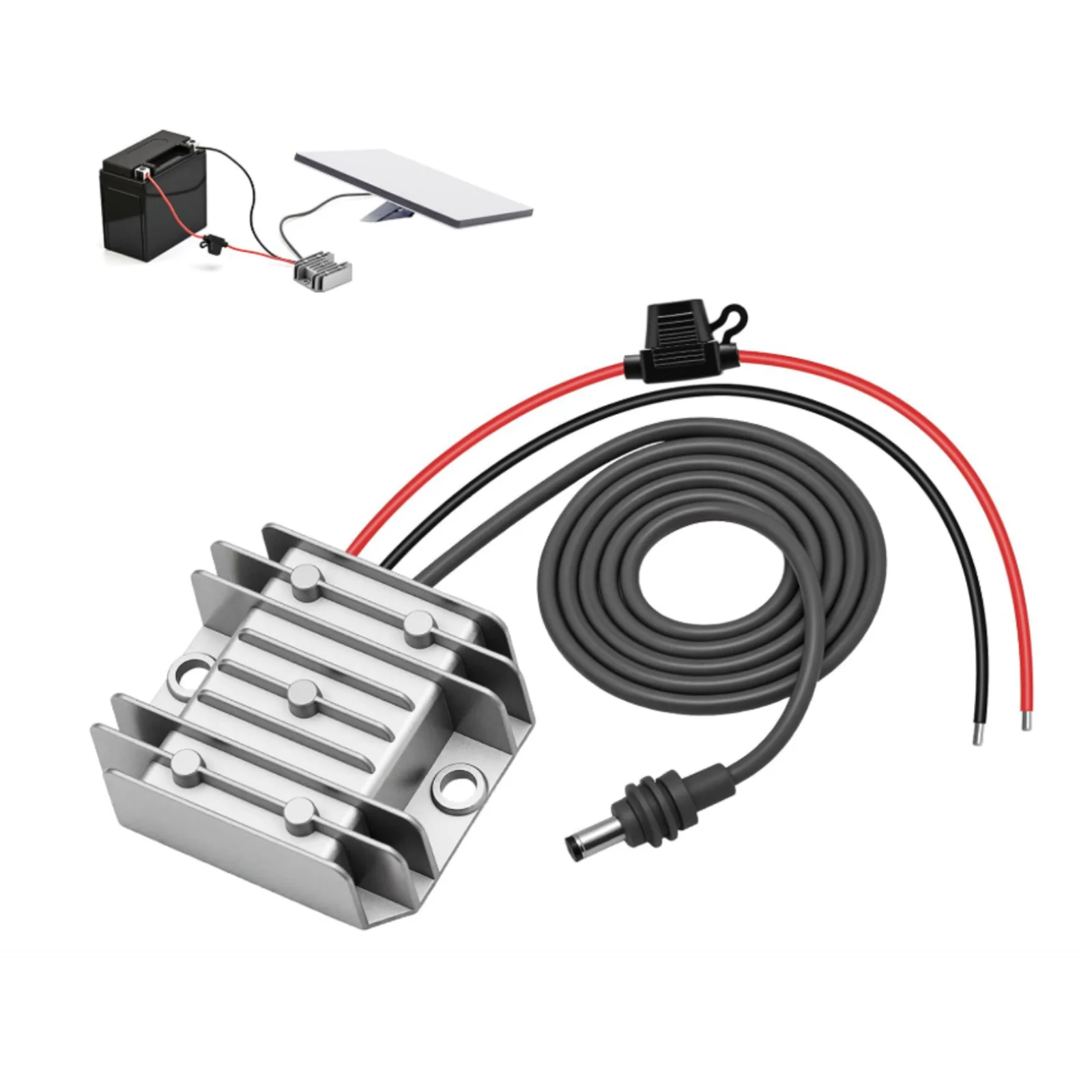

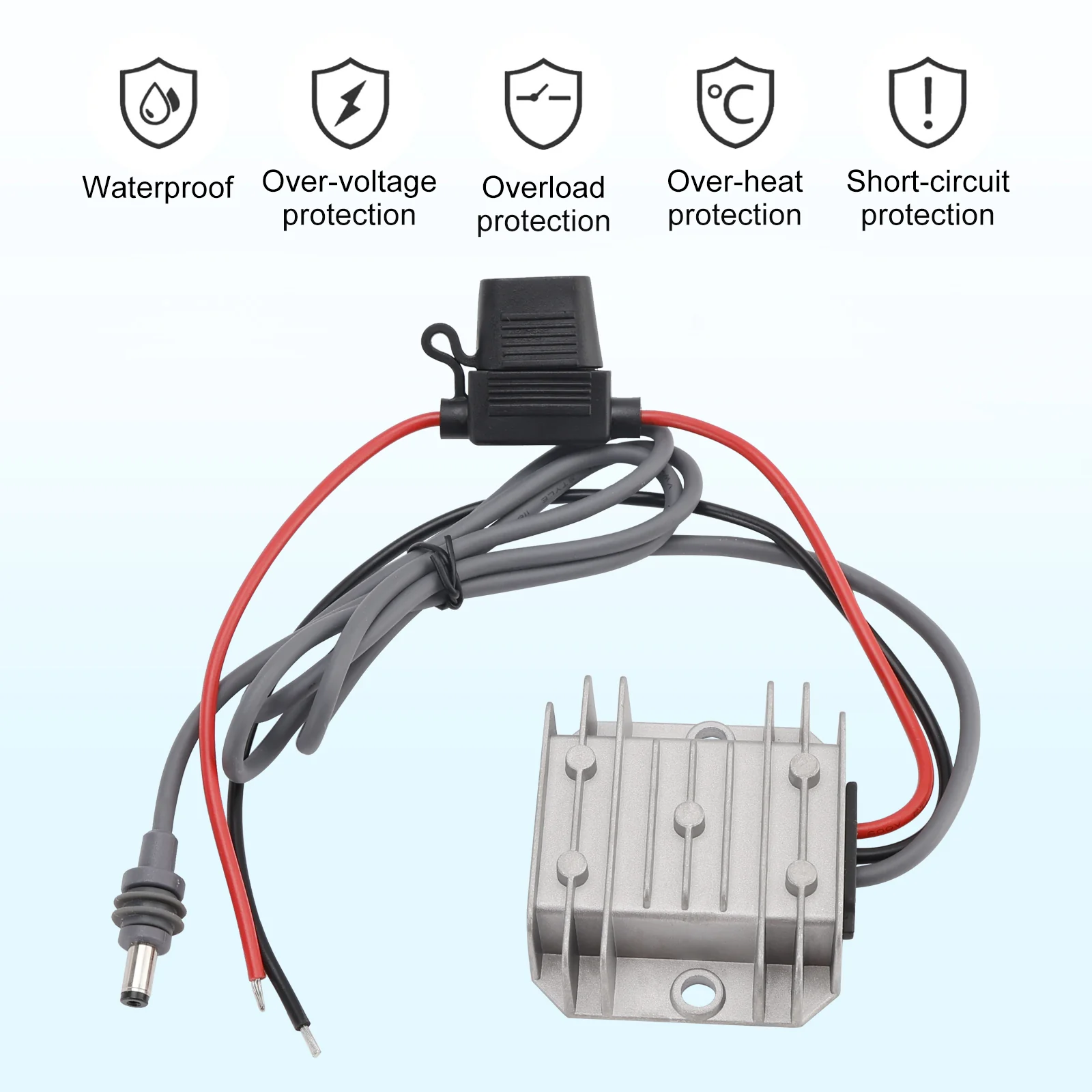

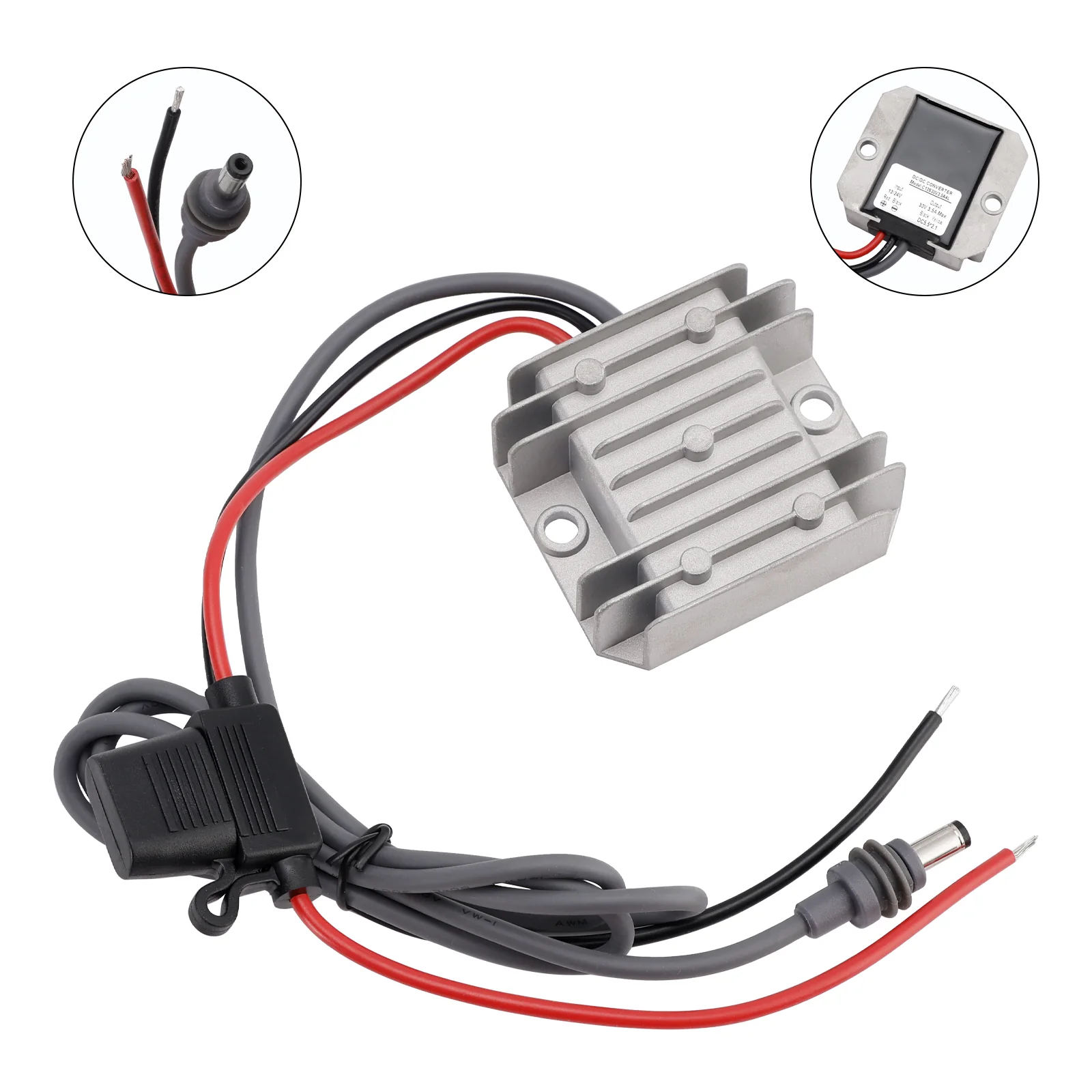

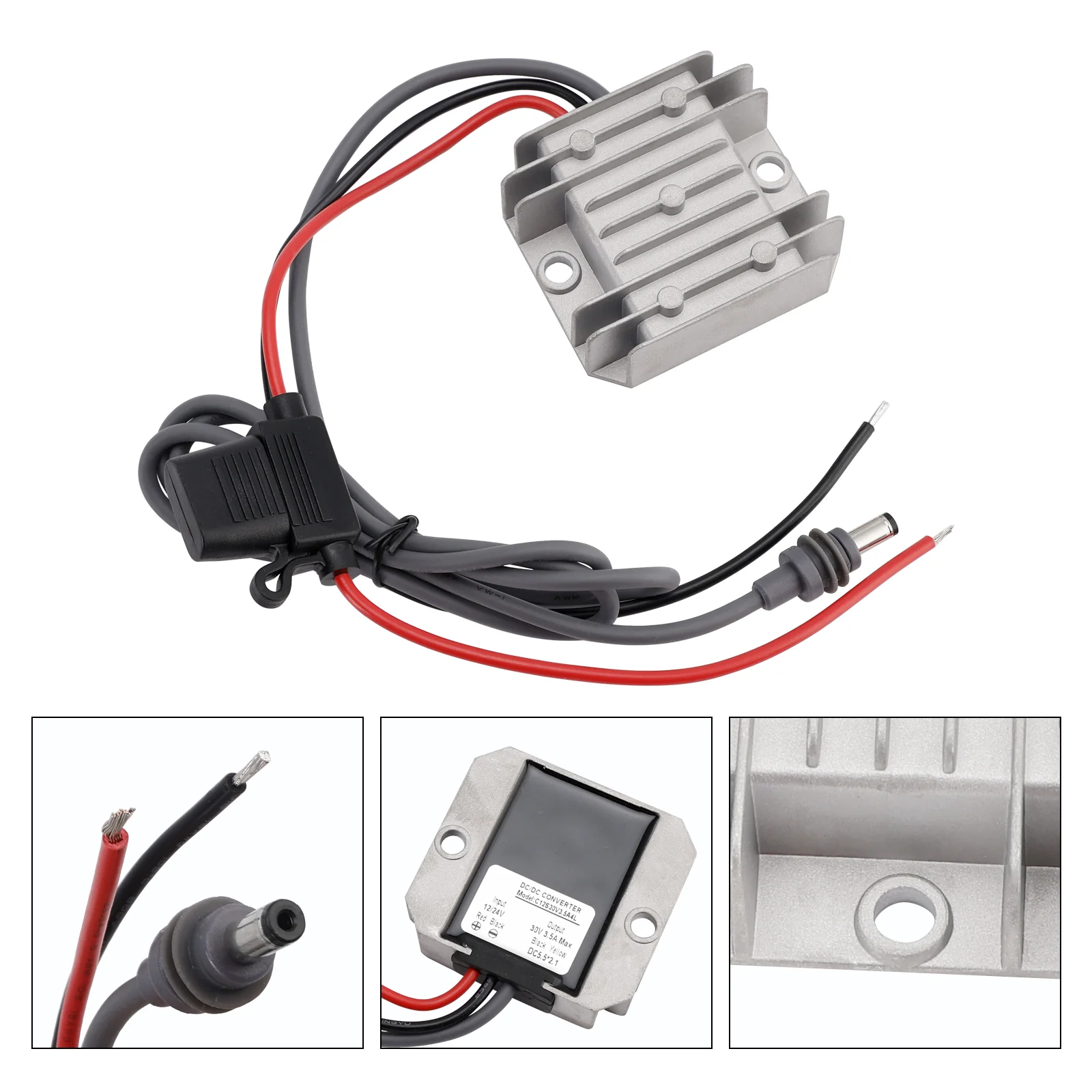

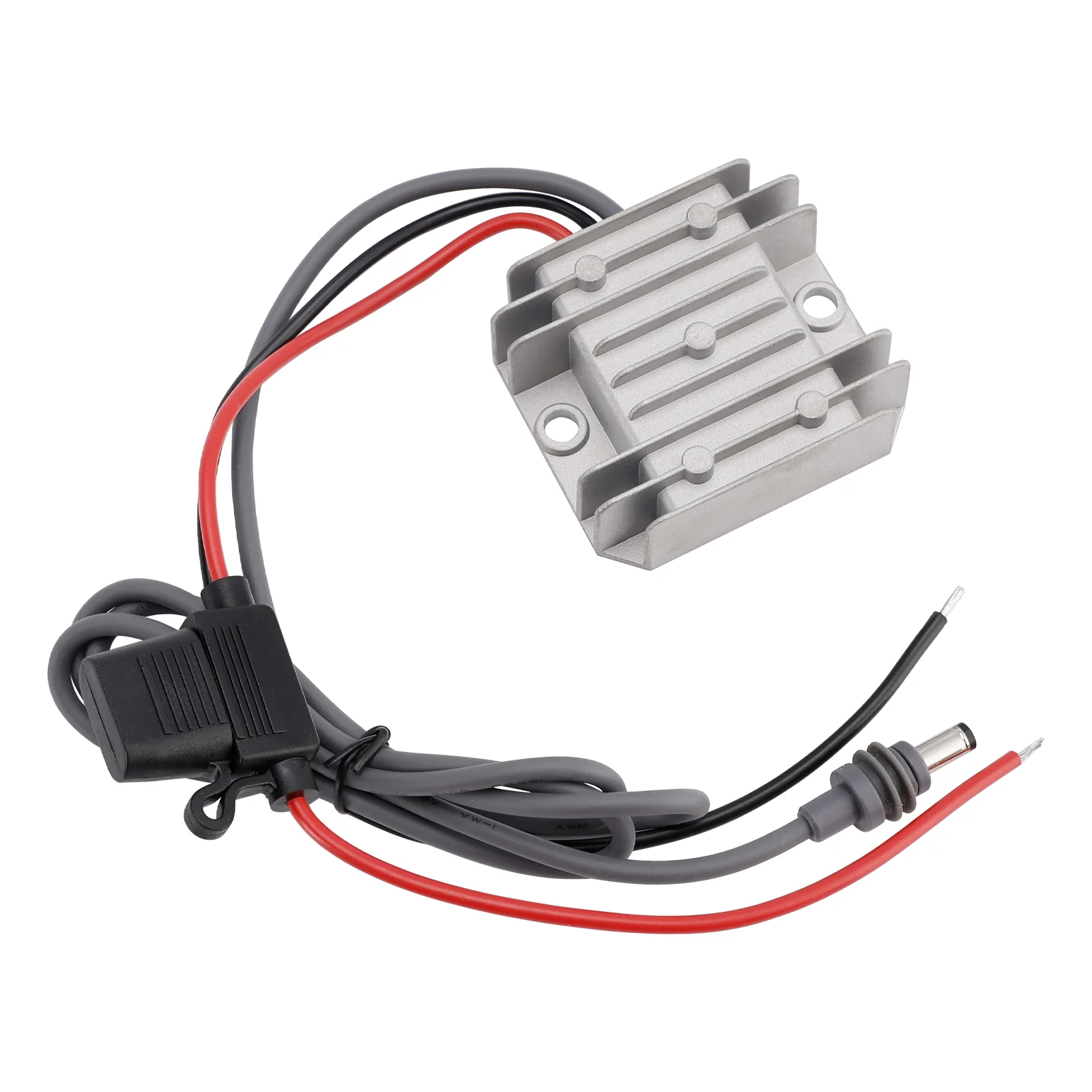

12V/24V To 30V 3.5A 105W Mini Power Supply Boost Conversion With Fuse

12V/24V To 30V 3.5A 105W Mini Power Supply Boost Conversion With Fuse

Feature:
1: High quality thermal silica potting, waterproof, dust-proof, shockproof effect.
2: Aluminum Outer Case material, long term stable and reliable.
3: Easy to install, anti-aging, good heat dissipation.

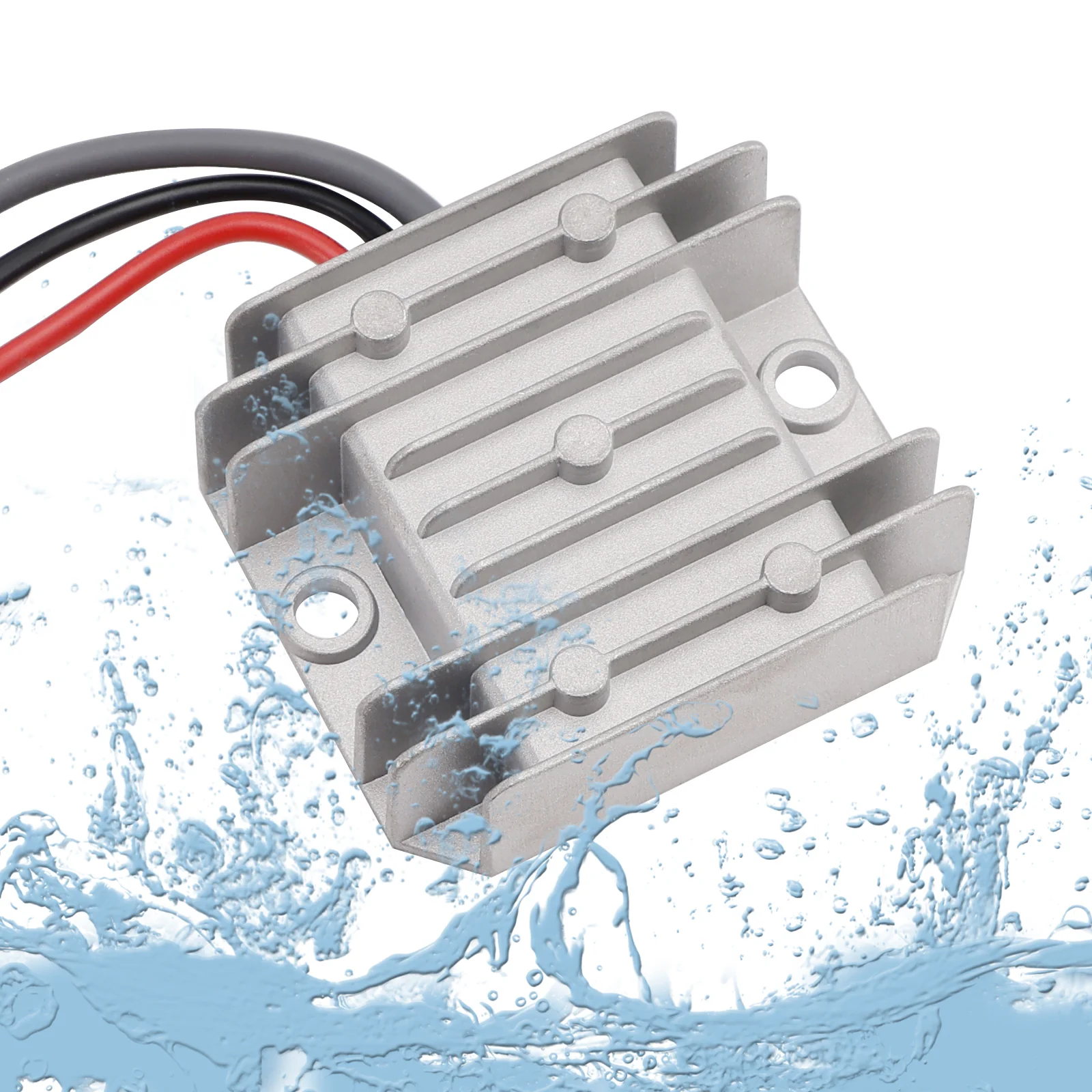

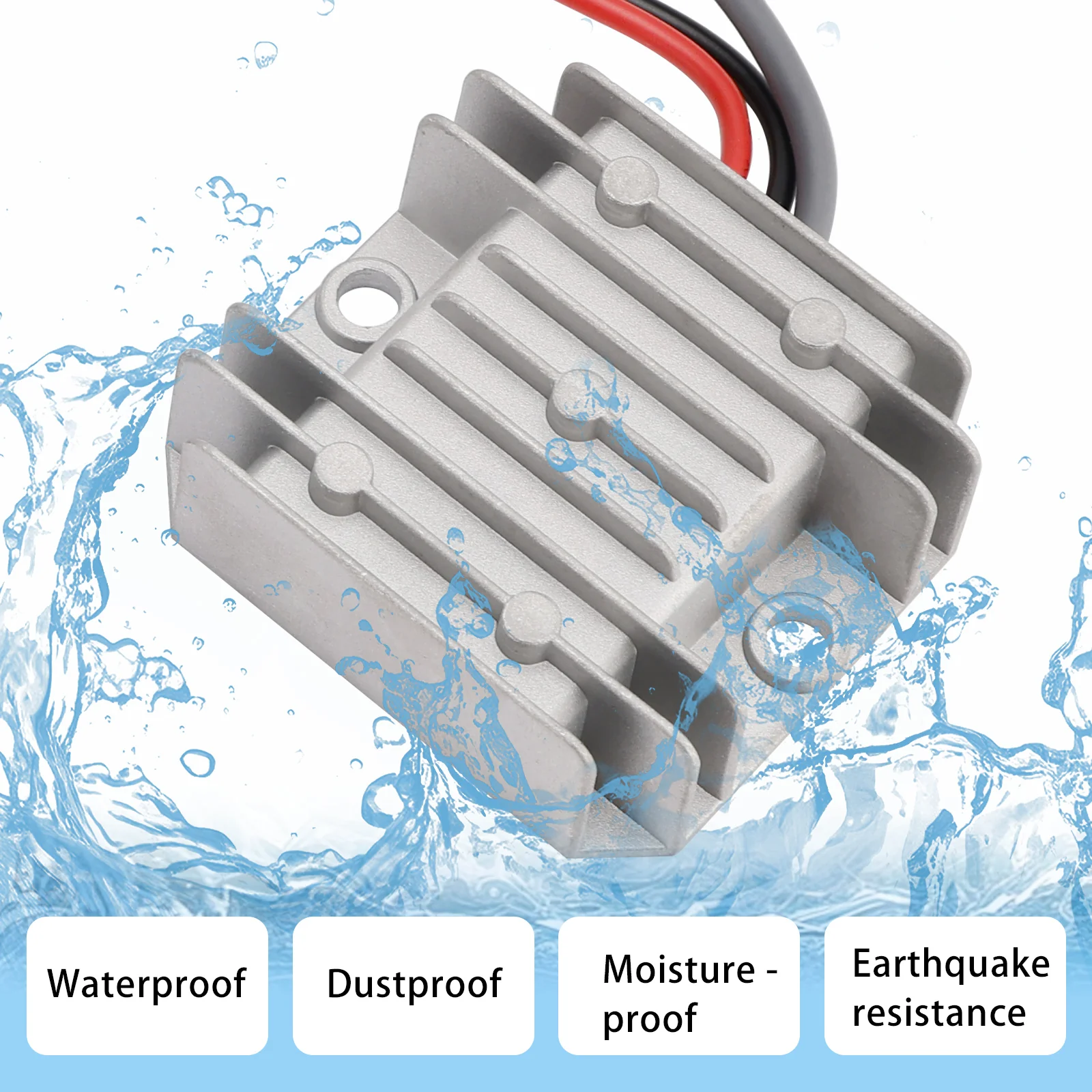

4: IP67 waterproof and shockproof design, suitable for different outdoor harsh environment.
5: Widely used: LED display screens, intelligent robots, communication base stations, industrial control, vehicle-mounted equipment and other instrument fields.

Specifics:
Condition: 100% Brand New
Shell Material: Die-cast aluminum alloy
Input Voltage: 12V/24V
Input Voltage Range: 9-28V DC
Output Voltage: 30V±0.2V
Output Current: 3.5A
Output Rated Power: 105W
Conversion efficiency: More than 90%
Operating Temperature: -40℃ to +80℃
Waterproof Rating: Ip67

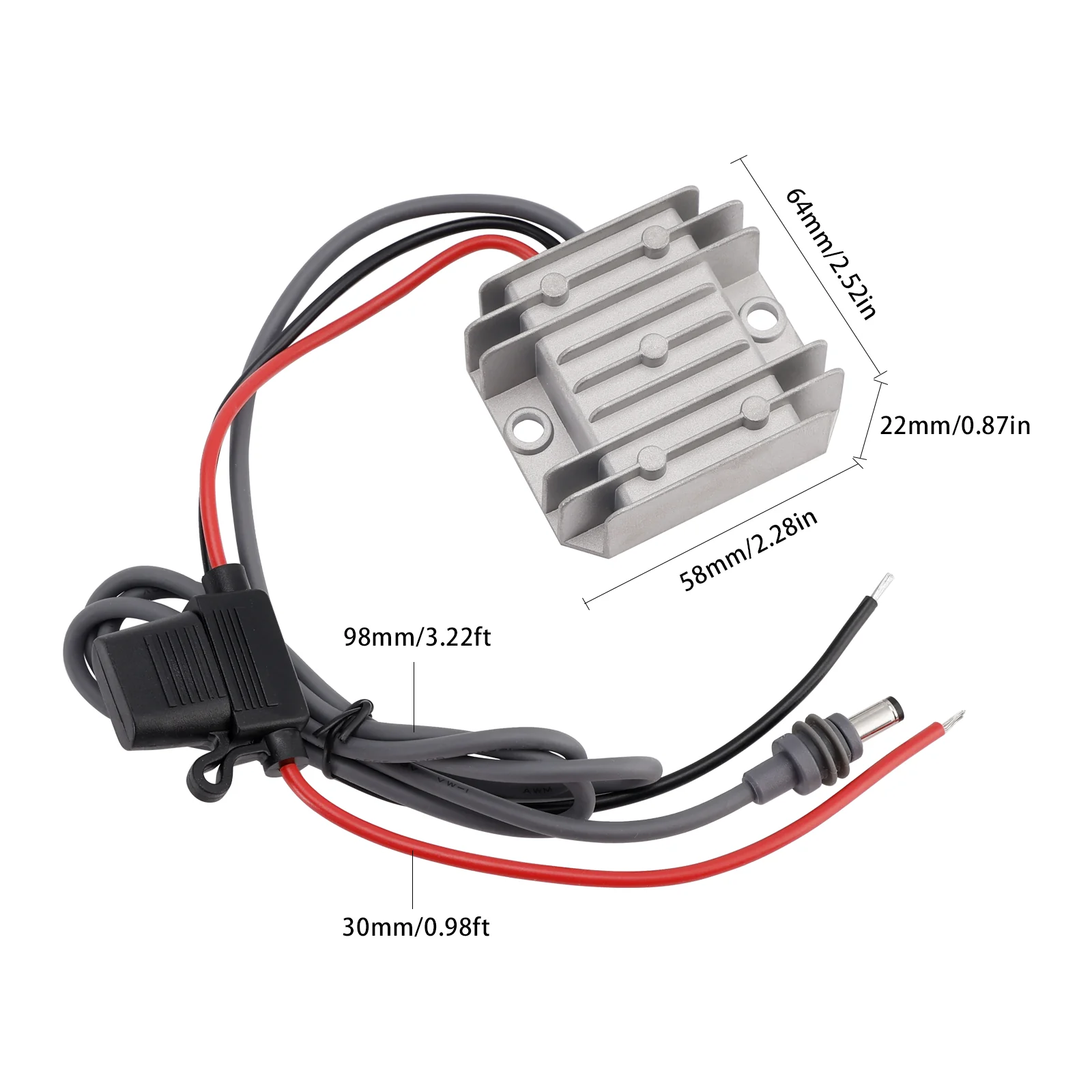

Size: 64 x 58 x 22mm/2.52 x 2.28 x 0.87inch

Note:
1. Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2. Please take with an average load, do not merge,if there are multiple output cables in the output port.
3. You need to pay attention to make the power module cool,if output is up to the maximum current value.
4. In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment

Package Included:
1x Converter Adapter
