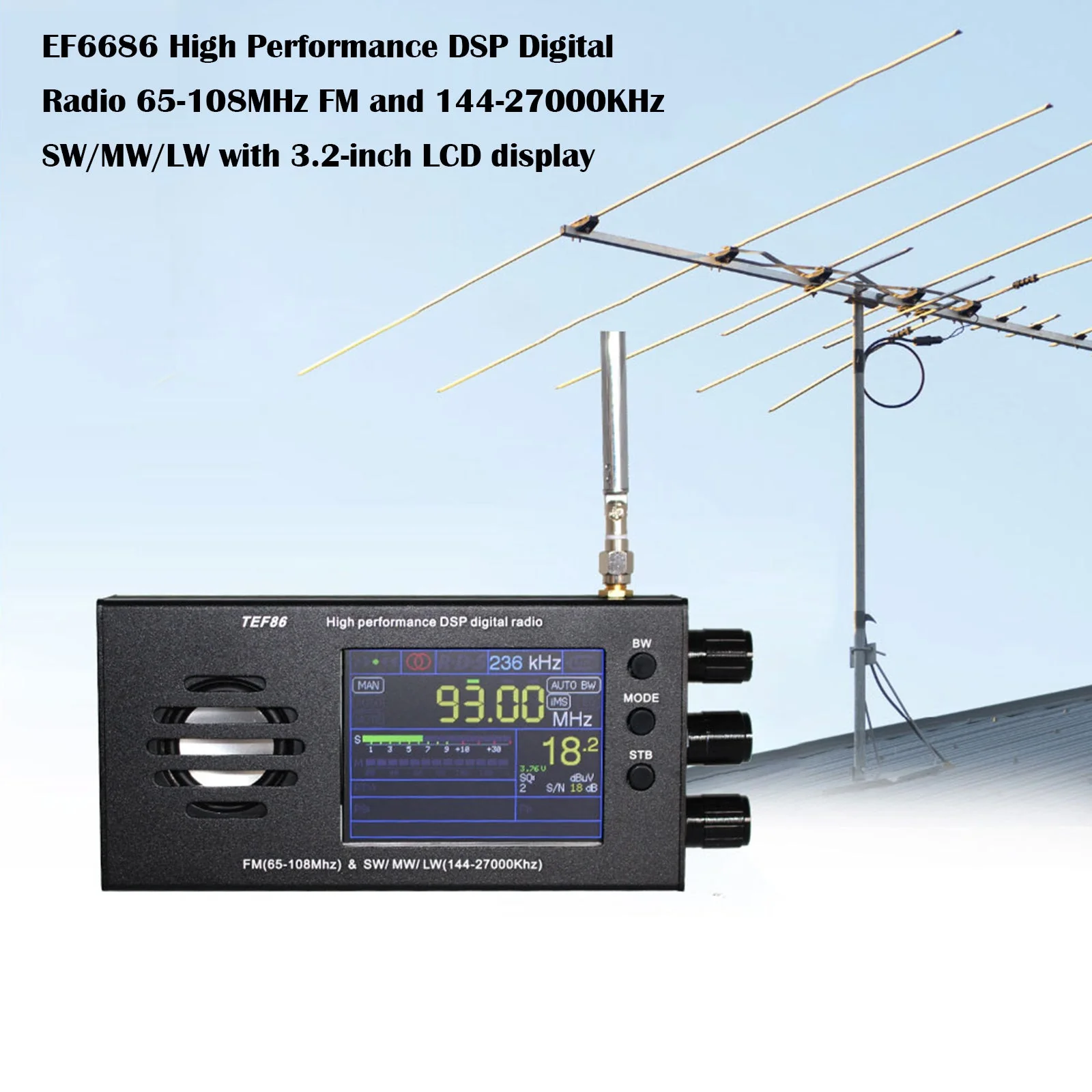

3.2" LCD Display EF6686 High Performance DSP Digital Radio 144-27000KHz SW/MW/LW
?Features:
- TEF6686HN high quality DSP chip
- FM (65 - 108MHz) and SW/MW/LW (144 - 27000KHz) radio range

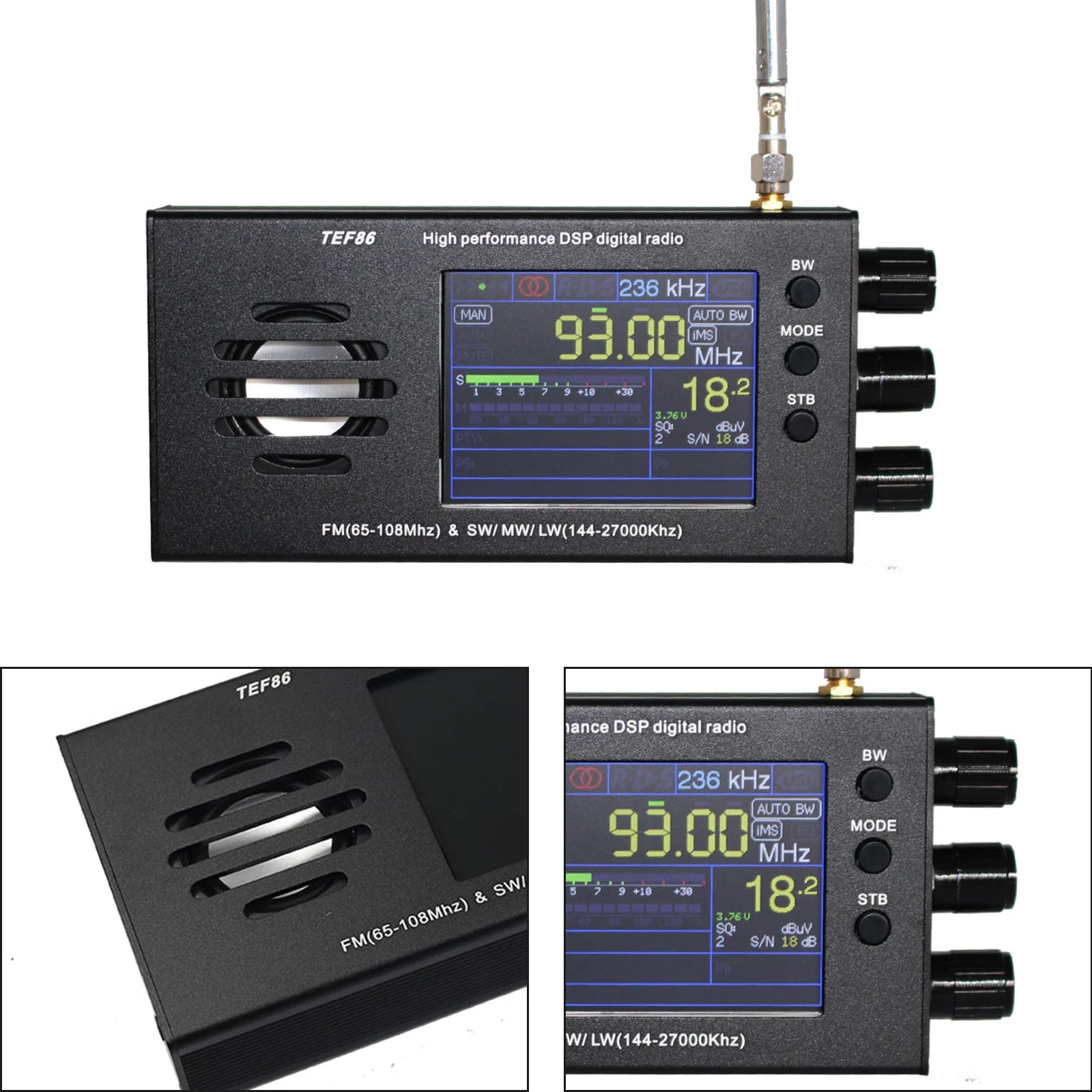

- 3.2-inch LCD display, built-in speakers, supports headphones
- Type-C charging port, large-capacity lithium battery

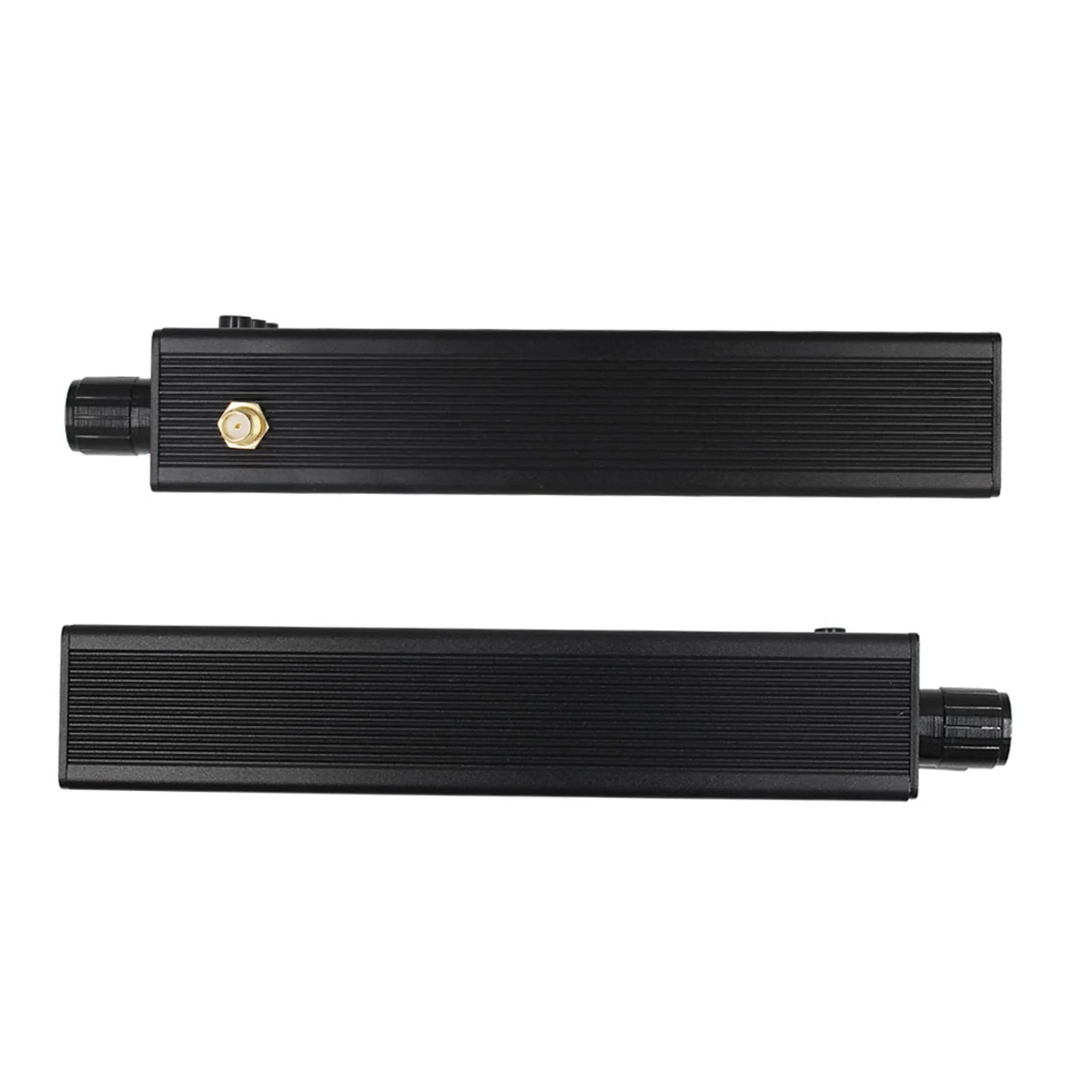

- 75 cm telescopic antenna, all aluminum alloy housing
- Dimensions: 16.5*7.5*3cm
- Packing weight: 395 grams Packing size: length 20cm*width 10cm*height 4cm
Key Function:
※"BW" 1. Short press the "BW" button on the panel to adjust the bandwidth of the radio's signal processing
(56kHz, 64kHz, 72kHz, 84kHz, 97kHz, 114kHz, 133kHz, 151kHz, 168kHz, 184k
Hz, 200kHz, 217kHz, 236kHz, 254kHz, 287kHz, 311kHz, automatic). 2. Long press "BW"
Press the button to switch between stereo and normal sound. 3. When the power is off, press and hold the "BW" button to turn on
machine, you can change the "TUNE" rotation direction.
※"MODE" 1. Short press "MODE" to switch between automatic frequency adjustment and manual frequency adjustment. Under automatic frequency adjustment,
Just turn "TUNE" once and the radio can automatically search for channels. Under manual frequency adjustment, it is necessary
Adjust the frequency parameters by pressing and rotating "TUNE". 2. Press and hold the "MODE" button to enter
Menu mode, modify the underlying parameters, it is not recommended to modify the default parameters. 3. When the power is turned off, press and hold
Press the "MODE" button to turn on the phone and flip the screen.
※"STB" 1. Short press the "STB" button to switch between FM/AM (SW/MW/LW) modes. 2. long
Press the "STB" button to turn off the screen and extend battery life. 3. When the power is turned off, press and hold "STB"
Press the power button to automatically calibrate the received signal strength.
Package Included:
- 1 x host
- 1 x telescopic antenna
- 1 x type-c charging cable
- 1 x machine corner pad
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
